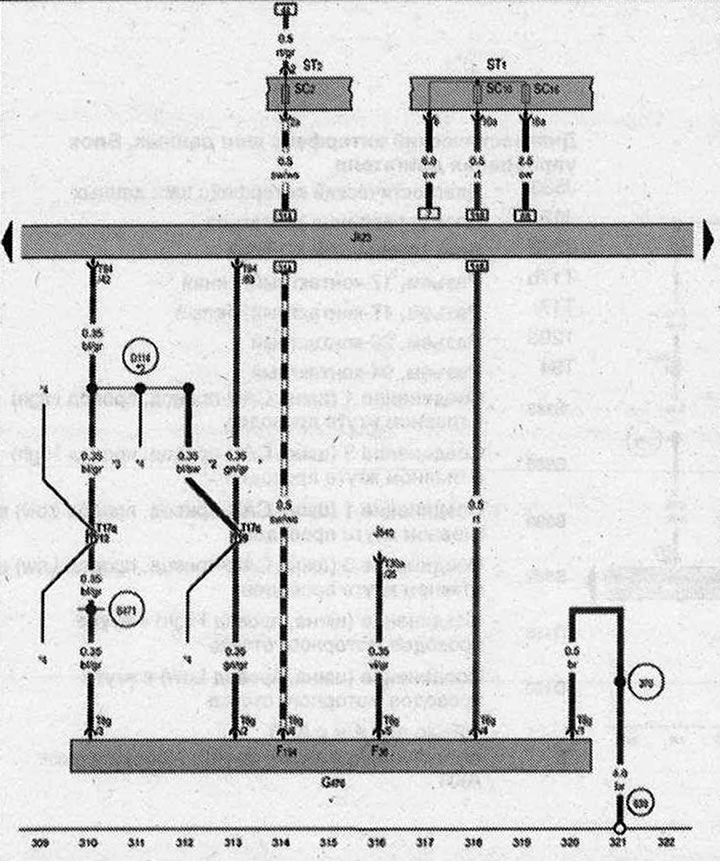

Clutch pedal position sensor, Engine control unit
![](https://www.audimanual.ru/img/q/4433.jpg)
- F36 - Clutch pedal switch
- F194 - Clutch pedal switch for engine starting
- G476 - Clutch pedal position sensor
- J540 - Electromechanical parking brake control unit
- J623 - Engine control unit
- ST1 - Fuse box 1
- SC2 - Fuse 2 in fuse block C
- ST2 - Fuse box 2
- SC10 - Fuse 10 in fuse block C
- SC16 - Fuse 16 in fuse block C
- T6g - 6-pin connector
- T17q - Connector, 17-pin, red
- T30a - Connector, 30-pin
- T94 - connector, 94-pin
- 370 - Connection to ground 5 in the main wiring harness
- 639 - Ground connection point on the left A-pillar
- B471 - Connection 7 in main wiring harness
- D114 - Connection 12 in the engine compartment wiring harness
- *-only for vehicles with manual transmission
- *2 - only for vehicles with automatic transmission
- *3 - only for vehicles without automatic transmission
- *4 - see the current automatic transmission electrical diagram
ws | white | sw | black |
ro | red | rt | red |
br | brown | gn | green |
bl | blue | gr | grey |
li | lilac | vi | lilac |
ge | yellow | or | orange |
rs | pink |
